Engineering A Real-Time Betting Platform For Performance, Resilience, And Growth

The Challenge

The platform's explosive growth introduced high-stakes engineering and delivery challenges:

API Latency And Infrastructure Load

• Unpredictable spikes during sports events led to latency above acceptable thresholds (P99 > 2s), compromising core user workflows.
• Backend throughput plateaued at ~140 RPS, blocking user scale and stressing transactional endpoints.
• Database-level deadlocks triggered cascading service outages due to unbounded query payloads.

Streaming System Bottlenecks

• Python-based independent streaming processes created memory bloat, CPU exhaustion, and deployment friction.
• Markets often failed to update in time, especially when supporting 20K+ market live feeds.



Platform Fragility And Incident Recovery Gaps

• Service-wide outages were triggered by silent proxy bypass, logging overloads, and lack of monitoring guardrails.
• Operational runbooks and observability pipelines were insufficient for root cause analysis.



Multi-Level Data Aggregation Failure

• Dashboard APIs triggered recursive joins across user hierarchies, causing long query times and data inconsistencies.
• Real-time visibility into betting PnL was inconsistent and unstable.



Delivery Model Constraints

• Feature delivery was unpredictable post-MVP due to siloed responsibilities and backend/frontend misalignment.
• Rework and missed expectations increased due to late integration and fragmented QA cycles.



Experience Bottlenecks On Login

• The platform’s first-touch user flow suffered from large bundle sizes, long FCP/LCP, and blocking tasks.
• Lighthouse scores dropped below 70, impacting SEO and user retention.

The Solution

Axelerant deployed a comprehensive engineering-first transformation, re-architecting core services, infrastructure, and team workflows.

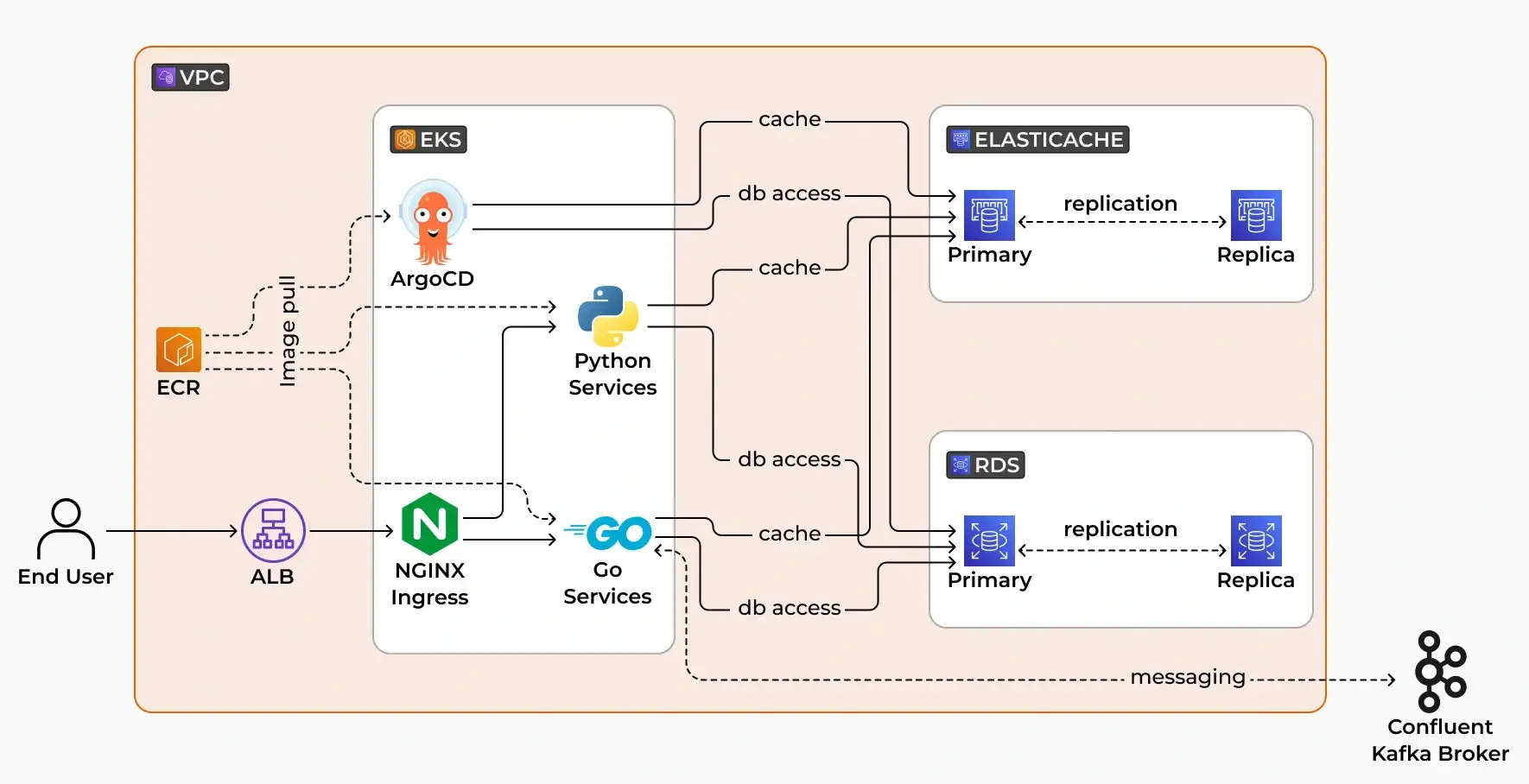

Cloud-Native Platform With Kubernetes And Golang

• Built a fully containerized platform on Kubernetes with namespaced isolation, pod-level scaling, and GitOps workflows via ArgoCD and Helm.
• Rewrote Python services in Golang, cutting CPU usage from 6–8 cores to <1 core and memory from 16 GB to <500 MB per pod.
• Added Redis ElastiCache, PostgreSQL with failover, and Kafka with persistent topics for real-time message streams.
• Enhanced autoscaling logic via Karpenter and PerfectScale; enabled observability using OpenTelemetry.

Streaming Rewrite For 15x Efficiency

• Replaced fragmented Python processes with a unified Go service using goroutines and persistent WebSocket connections.
• Reduced memory usage from 6 GB → 150 MB and CPU from 2.5 cores → 0.1 core.
• Added configurable goroutine pools, message queue backpressure controls, and fault isolation mechanisms.
• Introduced streaming observability with Prometheus, Loki, and custom Grafana dashboards.

Database Deadlock Mitigation And Recovery Engineering

• Applied query payload governance, setting upper bounds on joins, subqueries, and sort parameters.
• Added retry-safe transactional workflows and async processors for slow writes.
• Designed incident recovery playbooks with pinned session flushing, log pruning, and failover management.

Multi-Account AWS Control Tower Setup

• Transitioned to an AWS Control Tower model, segmenting dev, staging, and production environments.
• Integrated Google Workspace with AWS SSO to manage role-based access across developer, product, and quality teams.
• Applied SCPs, CloudTrail, and VPC Flow Logs to enforce security compliance.
• Set up Tailscale VPN routing and API firewalling for restricted services.

Feature-First Engineering Model

• Formed stable team pods around modular components like user management, configuration, and payouts.
• Shifted to API-first design—frontend and QA teams worked with mocked contracts before backend merges.
• Eliminated partial testing: a component entered QA only when fully integrated.
• Each sprint included demo-ready components with working frontend-backend logic.

Load Testing And Continuous Performance Loops

• Built load testing pipelines using k6 to simulate more than 2000 concurrent bettors across large set of market types.
• Detected bottlenecks in transactional APIs with 19s response times; reduced to <250ms via query profiling and caching.
• Instrumented latency and error budgets across critical endpoints using P95/P99 metrics and OpenTelemetry.
• Enabled real-time autoscaling tied to event rate and request patterns.

PnL Aggregation With Kafka And Golang

• Replaced synchronous, recursive dashboard queries with an event-driven architecture using Kafka and Golang.
• Implemented durable, Redis-backed event processing with pre-aggregation on key actions (bets placed, odds updated, user hierarchy changes) using hierarchical sync queues and DLQ processors.
• Dashboard load times dropped from 6–8s to sub-1s, even under high traffic.

Login Performance Overhaul

• Lighthouse scores increased to 99, FCP dropped from 14.5s to 4.97s, and long tasks were eliminated.
• Refactored UI structure for accessibility, speed, and better LCP distribution.

The Result

The implemented solutions resulted in several enhancements:

89.13% API Latency Reduction

• Before: P99 latencies for key APIs exceeded 2.3s, with backend throughput capped around 140 RPS.
• After: Optimized service orchestration, query design, and caching pushed P99 below 250ms, and throughput increased to 560+ RPS, confirmed under controlled load.

40x Streaming Memory Efficiency

• Rewriting from Python to Go reduced the memory per process from 6 GB to 150 MB.
• Consolidation into a single streaming connection removed fragmentation, enabling scale to 20K concurrent feeds.

57% Faster Login Loads

• Login bundle shrank from 258kB to 115kB after replacing AntD with Panda CSS and Formik.
• Lighthouse score improved from 86 to 99.
• FCP/LCP dropped from 14.5s to 4.97s, eliminating all blocking tasks and improving SEO as well as UX.

80% Drop In Incident Frequency During Peak Events

• Payload governance, structured logging, and runbooks with automated flushing reduced production incident rates by over 80% during high-traffic sporting events.
• Prior to this, oversized payloads and logging surges frequently caused cascading failures across services.

Sub-250s Aggregated PnL Dashboard Loads

• Admin dashboards that previously took 6–8s to compute nested user earnings now load in <250ms via pre-computed cache layers.
• Kafka-driven pre-aggregation reduced DB load and allowed real-time updates across dynamically changing user hierarchies.

Delivery Velocity And Predictability Improved

• Every sprint now ends with frontend-ready, QA-verified component demos, increasing delivery confidence and enabling better stakeholder alignment.
• Integration rework and QA triage efforts dropped significantly as API-first planning and cross-functional pods took full ownership.
